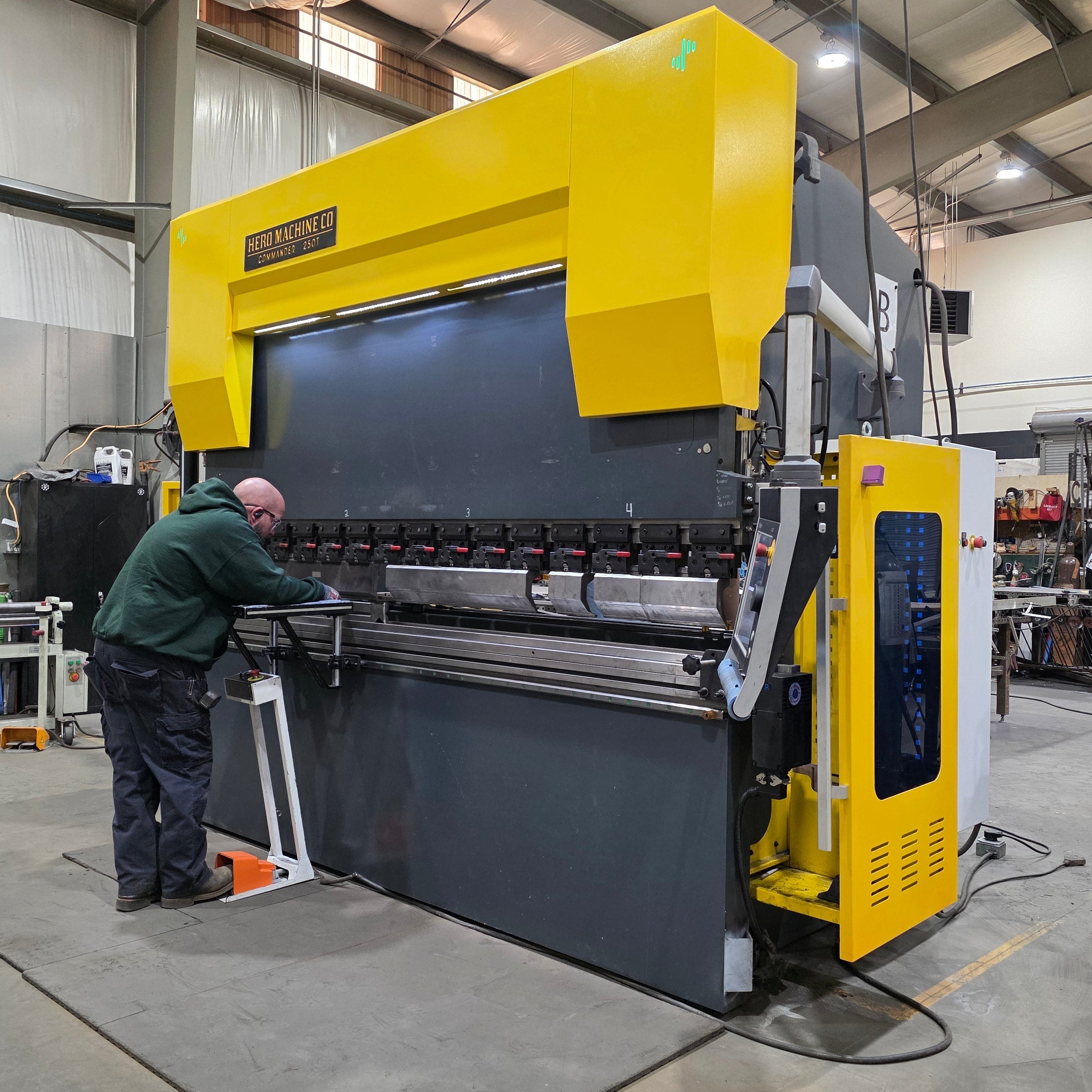

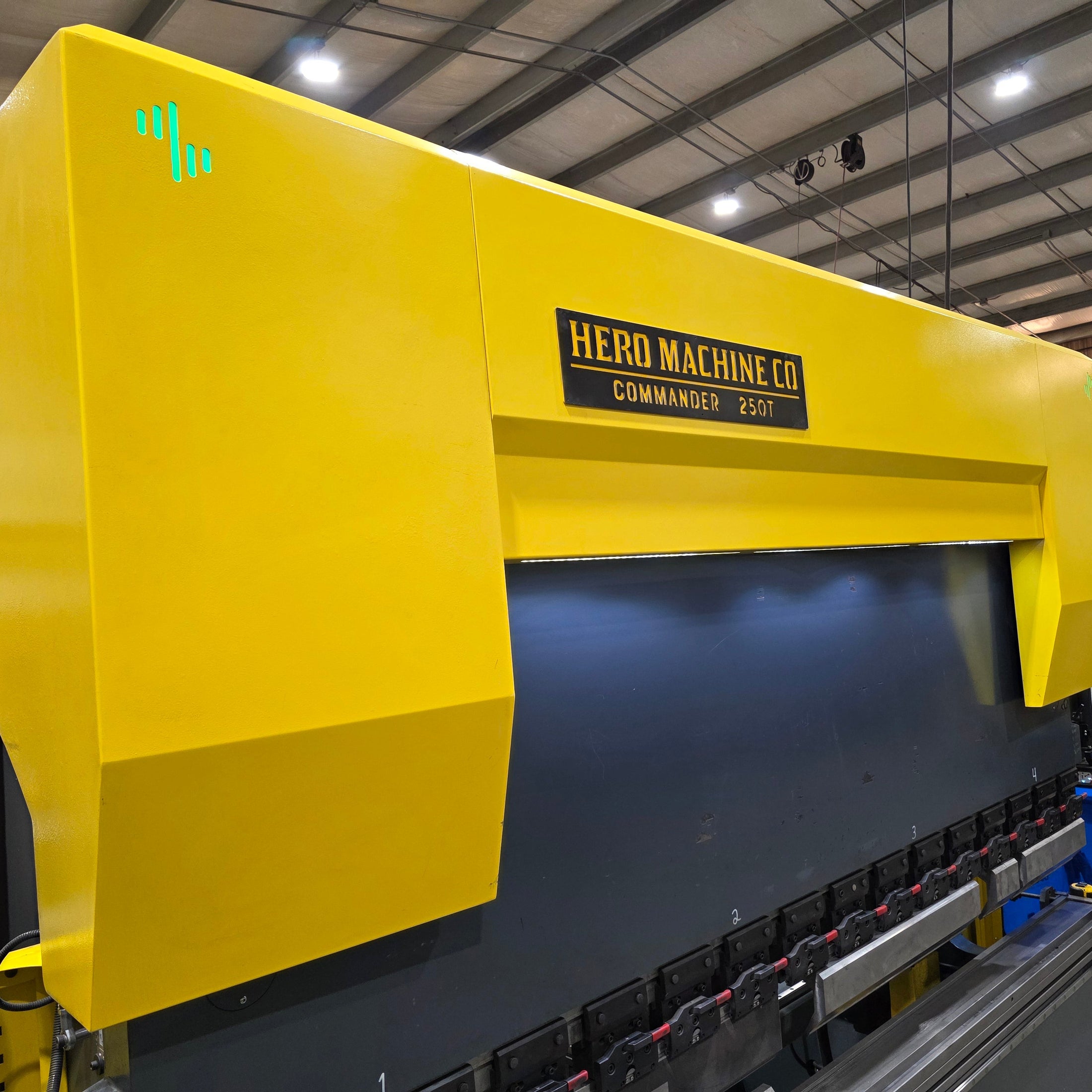

Commander Series: 6+1 Axis CNC Hydraulic Press Brakes
The Hero Machine Co. Commander Series is engineered for high-precision metal fabrication, offering a versatile 6+1 axis configuration (Y1, Y2, X, R, Z1, Z2 + V-axis Electric Crowning). This series provides a robust solution for complex multi-bend sequences, ensuring repeatable accuracy across sizes ranging from 5ft to 16ft.
Flagship Control with Delem DA-69S
Every Commander Series machine is powered by the Delem DA-69S CNC Controller. This state-of-the-art system transforms complex geometries into simple tasks:
-
3D Visualization & Simulation: View full 3D workpieces and real-time collision detection before the first bend.
-
Touch Navigation: A high-resolution industrial touchscreen provides an intuitive interface for direct navigation between programming and production.
-
Automatic Calculations: The system automatically determines optimal bend sequences and calculates bend allowances and developed lengths.
Elite Component Integration
We build the Commander Series using globally recognized components to ensure long-term reliability and easy maintenance:
-
Hydraulic System: German-engineered Rexroth Valve System and Rexroth Hydraulic Pump for smooth, high-speed approach and retraction.
-
Main Motor: High-efficiency Siemens Motor for consistent power delivery and durability.
-
Electronics: Schneider Electric limit and travel switches for industry-leading safety and reliability.
-
Precision Motion: Taiwan SHAC ball screws and linear guide rails on the backgauge ensure positioning accuracy within 0.05 mm/m.
-
Feedback: GIVI Grating Rulers provide real-time positioning feedback for the Y-axis.
Series Specifications at a Glance
The Commander Series scales to meet your shop’s footprint while maintaining core performance features.
| Feature | Standard Configuration (DC-63T x 1600 Example) |
| Control Axes | 6+1 (Y1, Y2, X, R, Z1, Z2 + Electric Crowning) |
| Bending Force | 630 kN (63 Tons) |
| Max Bending Length | 1600 mm (approx. 5ft) |
| Throat Depth | 400 mm |
| Ram Speed (Downward) | 200 mm/sec |
| Crowning System | CNC Electric Crowning |
| Warranty | 2 years on main components / 5 years on structure |
