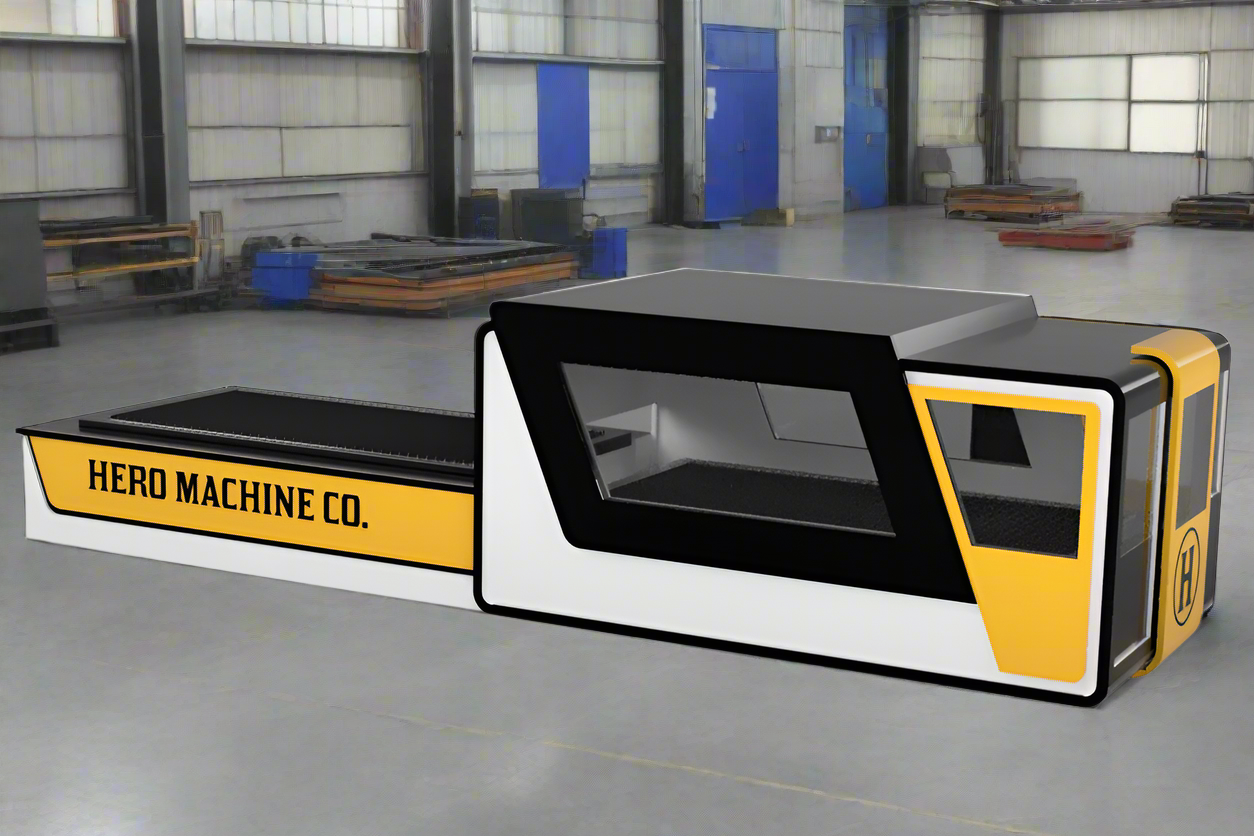

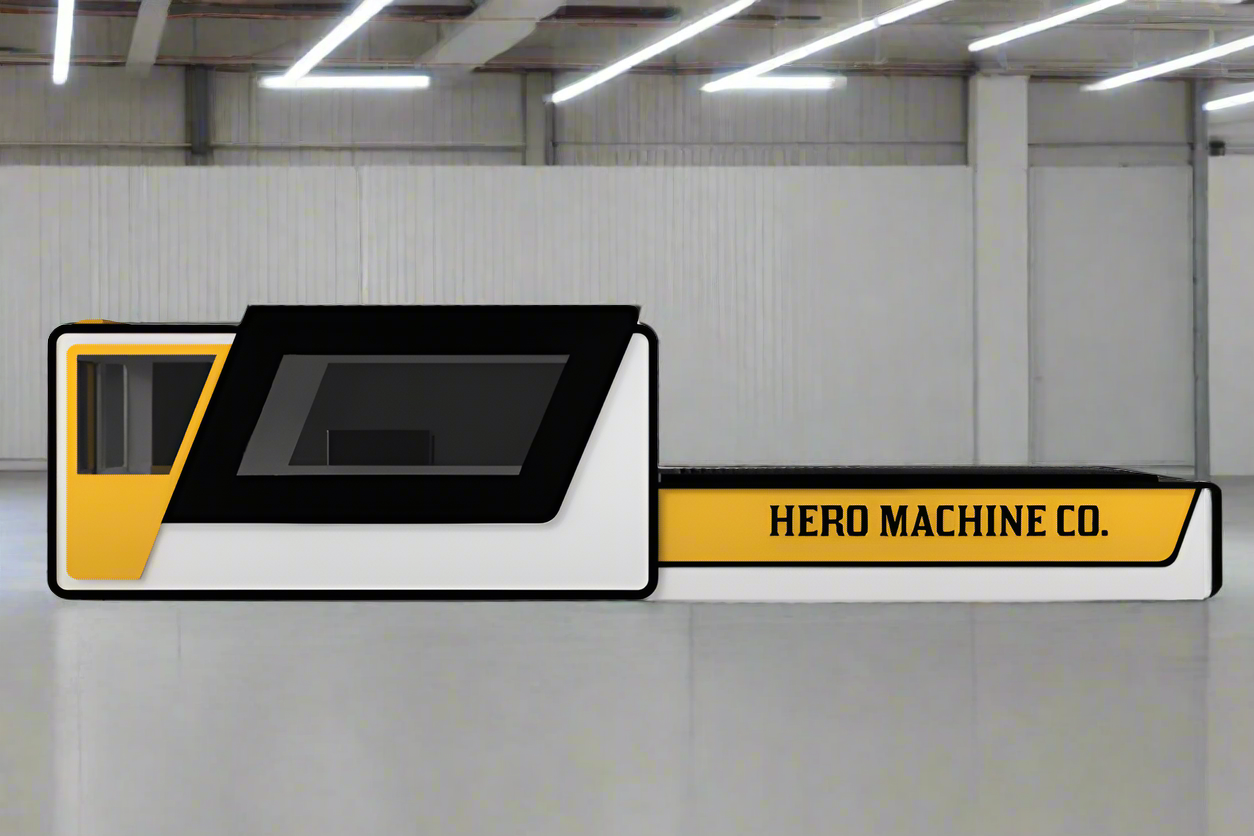

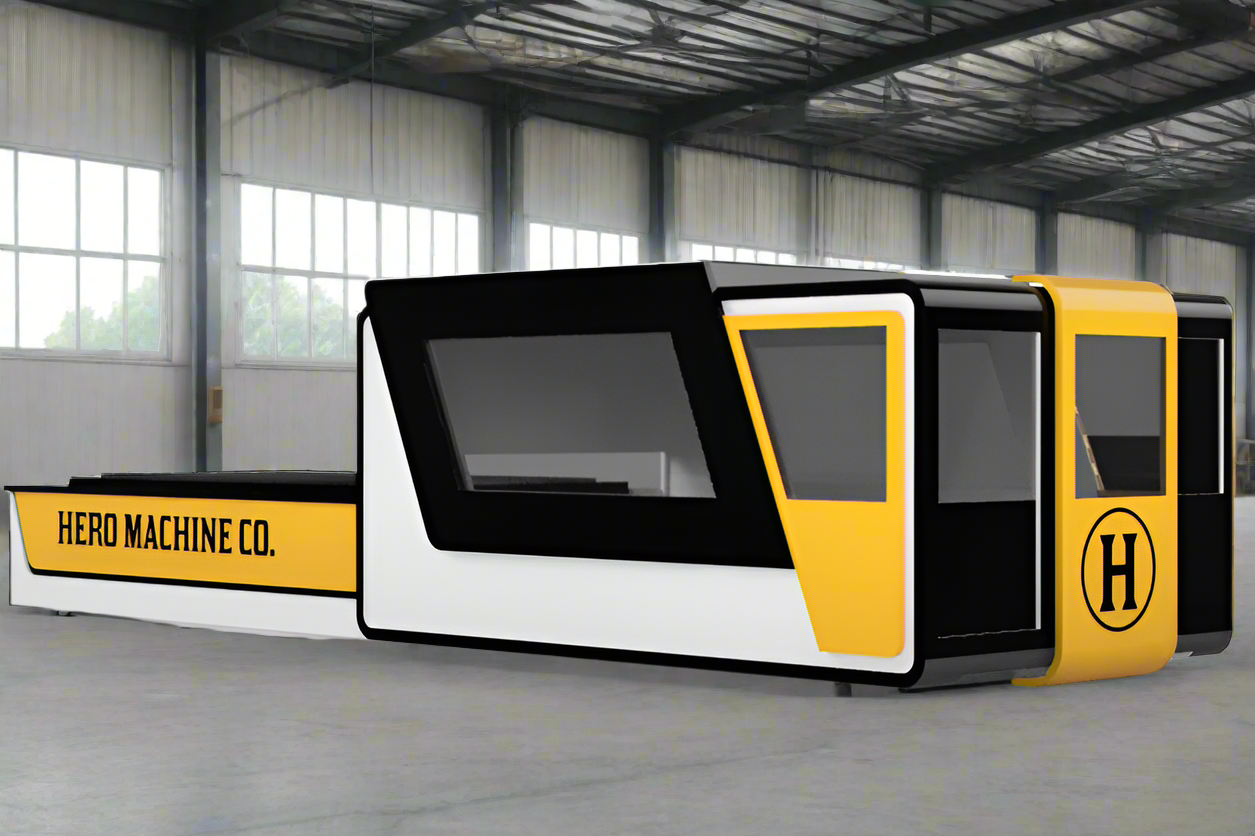

Pegasus 1.5kw 5' x 10' Fully Enclosed Fiber Laser & Exchange Table

PEGASUS DELIVERS FASTER ROI

Your ready to maximize the power of fiber laser sheet metal cutting with a fully enclosed machine and automatic exchange table.  Simultaneously load and unload sheets in less than 60 seconds with this automatic sheet loading system. The laser is only making you money when it runs, every time you load a manual bed the machine cannot be running parts.  Exchange tables have doubled the daily throughput of laser operations all over the country cutting ROI calculations in half.

DESIGNED IN THE USA

Our talented team of engineers and designers combine their years of experience to solve the common challenges associated with processing sheet metal with a fiber laser. Great design and years of experience using the equipment have been poured into the production of every fiber laser we sell and service.  We know the issues because we actually use the equipment to manufacture our own products.  Every touch point has been optimized with automatic nozzle changers, automatically focused lens assemblies and collision detection to protect your investment against catastrophic crash events.

CORE POWERS

- 62” x 122” working area

- 1.5kw max fiber laser resonator

- 1.5G of acceleration

ACCURACY

We focus on accuracy from the frame to the culminating lens, every component has been hand selected and tested for accuracy and robust operation that will last for years of continuous operation.  All frames are precision ground flat and parallel after fabrication to lay the foundation for the rest of the precision motion control and lens assembly that carry the responsibility of delivering the focused fiber laser beam to the work surface.

- Position accuracy +/- 0.002"/3ft

- Reposition accuracy +/- 0.001"

- Roundness accuracy <0.006"

- Diagonal accuracy <0.008"

STANDARD FEATURES

- Rapid speed 65 inches/second

- 60hz electrical systems

- Water chiller

- Automatic Edge Seeking

- BCS 100 Collision avoidance

- Low gas pressure alarm system to prevent overheating

- Automatic gas valve to regulate gas flow during cutting

- Automatic focus laser head actively tracks the work surface and compensates beam focus

- Remote pendant for wireless operation of all core functions

- Dust removal duct

- WiFi connection to network to load dxf files from any device on your network

- Automatic nozzle change for each material

- Automatic nozzle cleaning

- Remnant management

SERVICE COMMITMENT

On site installation with a trained service engineer that will install your machine on site and train you for 3 days on safe and productive operation of your equipment.  We will establish cut parameters for your materials and teach you how to center your beam, change lenses, oil/cleaning protocols, nest parts and common troubleshooting protocols.

3 YEAR WARRANTY*

LIFETIME PHONE SUPPORT

FREE SHIPPING

YOU PROVIDE

- Semi truck access for delivery and space for unloading

- Forklift for unloading

- 55 amps of 240v single phase power

- 35 CFM air compressor; contact us for air compressors we can build a package for you

- Fume extraction; contact us for fume extraction options and we will build a package for you
